TREE MULCHING DRIVE SHAFT – OFF 1400HP MACHINE

Preparing cold spray welding area for roller bearing position

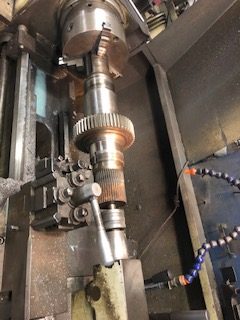

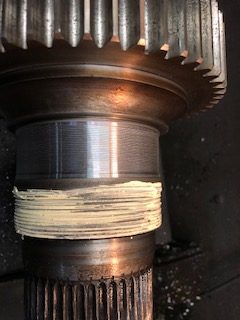

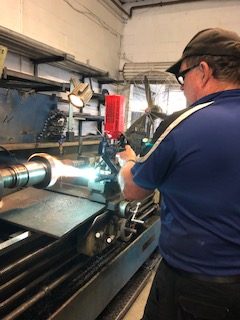

Cold spraying worn area with head wearing cold spray powder with no distortion to shaft
Major cost saving of repairing drive shaft than replacing new from USA

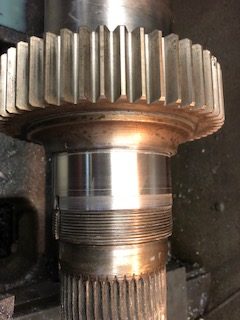

Completed rebuild bearing area with .03mm crush for new bearing. We fitted up new bearing, customer was very happy with the cost saving and the time frame.

BOAT TRIM RAMS

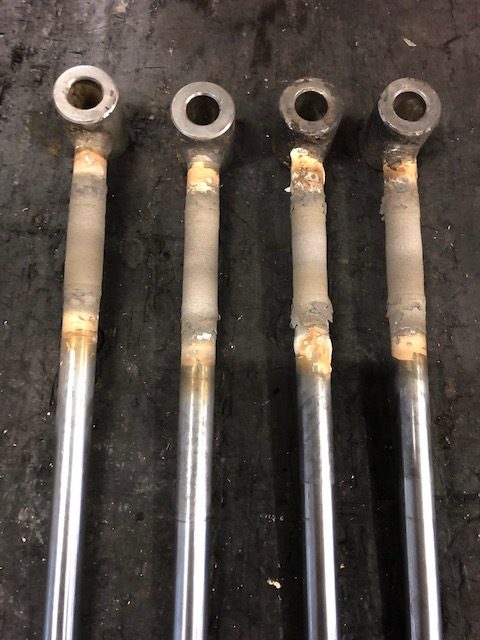

Corroded areas prepped with fine thread ready for built up areas painted in yellow anti stick paint to cater for over spray

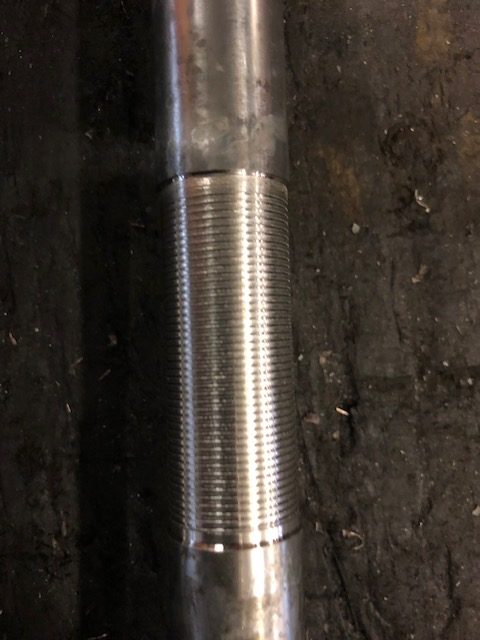

Prepped area with 1mm pitch thread

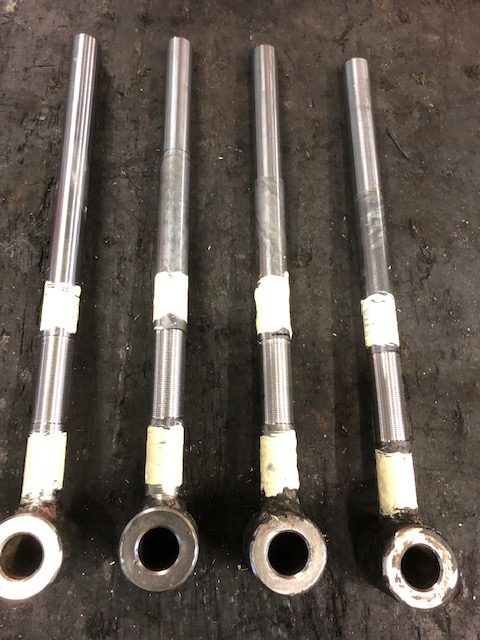

Built up areas with spray weld

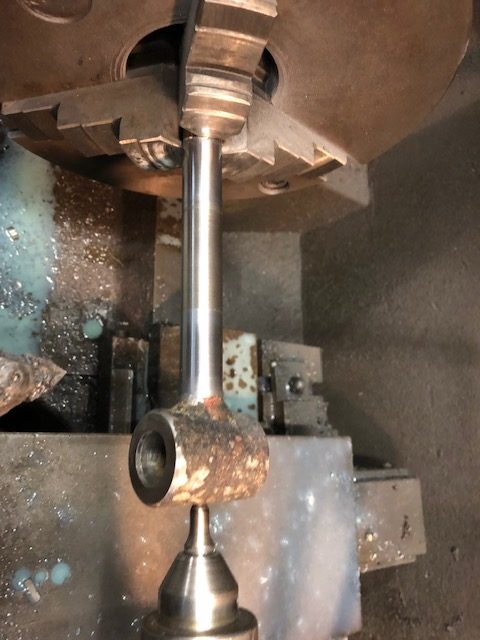

Machined and polished new seal area on trim ram. Customer was very happy with major cost saving instead of replacing.
